Specifications

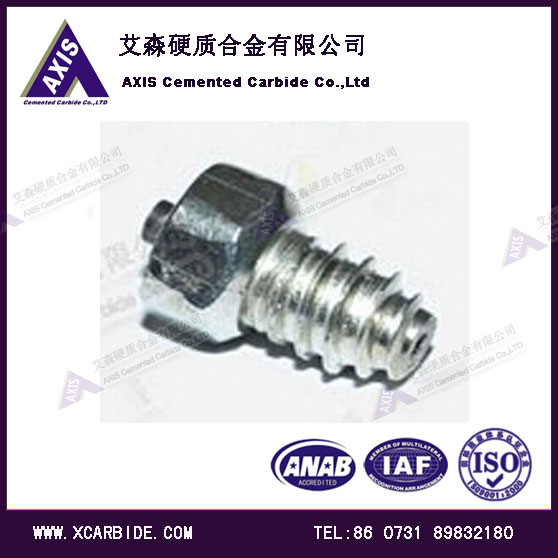

tungsten carbide passager snow tire studs
1.100% pure raw material
2.easily installed&removed
3.recycling
New Anti-slippery tire stud tool/ tungsten passager snow carbide tire stud :
Specifications:
1.size: 8*8, 6*6
6.5-5.5-1, 6.5-6.5-1
8.0-10-1, 8.0-11-1, 8.0-12-1, 8.0-13-1
9-10,9-11,9-12,9-13,9-14
2. threaded ball studs
3. truck wheel studs
specifications:
--100% pure raw material
--easily installed&removed
-- recycling use
-- sizes & types are available
--good wear resistance
--strict tolerance controlled
--100% virgin raw material
--zinc plated for rust protection
--directly factory sale with good price
--short and on time delivery
--all the specifications can be used in cars
--samples will be given upon the inquiry
Anti-slippery tire stud tool/ tungsten carbide tire stud :
1.center of 100% quality guarantee customized tungsten carbide tire studs, tyre nails :
Chemical composition: WC-80%+Co-10%
Density: (g/cm3):13.0-13.5
Hardbess HRA :>90(>1300HV30)
TRS Mpa:(N/MM2):1660
Poposity :(ISO):<A02B02
Free carbon and and Graphite phase :<C00
N phase :E00
grain size : (um):1.2-1.8
index of abrasive resistance :71+/-7.5
the center color: black
2.cloth of 100% quality guarantee customized tungsten carbide tire studs, tyre nails
Materia : low carbon steel
Surface covering : galvanizing
Details material of Anti-slippery tire stud tool/ tungsten carbide tire stud :
|
GRADE |
Co |
Hc |
Den |
RS |
HV30 |
GRAIN SIZE |
|
JX019 |
7.5-9.0 |
11.0-14.0 |
12.68-12.78 |
50-90 |
1400-1600 |
1.2-1.6 |
|
JX021 |
8.2-10.0 |
10.0-12.0 |
12.10-12.20 |
50-90 |
1400-1600 |
1.6-2.0 |
|
JX025 |
9.0-11.0 |
10.2-11.2 |
12.77-12.87 |
87-97 |
1380-1480 |
1.6-2.0 |
Anti-slippery tire stud tool/ tungsten carbide tire stud :
Application of Anti-slippery tire stud tool/ tungsten carbide tire stud:
Installation tool of Anti-slippery tire stud tool/ tungsten carbide tire stud:
Anti-slippery tire stud tool/ tungsten carbide tire stud :
